Name: LapSnapper Pro3 Magnetic Strip 1.2 m Strong
SKU: LS3-MS12S
Availability: InStock

LapSnapper Pro3 Magnetic Strip 1.2 m Strong

112.00 €

SKU: LS3-MS12S Category: Karting

Description

LapSnapper Pro3 Magnetic Strips 1.2 m Strong are installed at the start/finish and sector lines to enable precise detection by the system. The system supports up to three sector lines, allowing for one start/finish line and two sector lines. These passive magnetic strips (Strong) do not require an external power supply, making installation simple and efficient.

LapSnapper Pro3 Magnetic Strips (Strong) can be embedded into various surfaces, including asphalt, concrete, ground, floor, or even water. In special cases, the magnetic strip can be placed on the race track surface using a small ramp to cover it. When choosing the installation method, it is important to consider the maximum detection distance of the transponder to ensure optimal performance.

Key Features

Versatile Use – Suitable for both indoor and outdoor installations.
Optimal Detection Range – Maximum detection distance of 18 cm with the LapSnapper Pro3 Transponder for Karting.
Compact Design – Size: 26 x 32 mm, Length: 1.2 m (composed of 2 modules of 0.6 m each).
12-Month Warranty – Ensures reliable performance and peace of mind.

Order includes

2 LapSnapper Pro3 Magnetic Strip Strong 0.6 m Modules

LapSnapper Documents

Link to LapSnapper Technical Documents

Technical Specification

Feature		LapSnapper Pro3 Lap Timing System	LapSnapper Client & Monitoring Software
Product Package Contents
•	LapSnapper Lap Timing Software for Android	✔ Included	✖ N/A
•	LapSnapper Client & Monitoring Software for Android	Optional (✔)	✔ Included
•	LapSnapper Pro3 Decoder	✔ Included	✖ N/A
•	LapSnapper Pro3 Transponder for Karting or LapSnapper 3 Transponder	✔ Included	✖ N/A
•	LapSnapper Pro3 Magnetic Strip (Start/finish and sector lines)	✔ Included	✖ N/A
Technical Specifications – Lap Time Measurement
•	Lap Time Accuracy ¹⁾	± 0.001 s	± 0.001 s
•	Session Time, Lap Times, Lap Count, Best Lap Time & Lap Number, Average Lap Time, Time Differences, Lap Ranking, and Average Speed	✔ Included	✔ Included
•	Sector & Intermediate Times (Optional)	Max. 3 pcs	Max. 3 pcs
•	Maximum Session Time	Unlimited	Unlimited
•	Maximum Speed at Start/Finish Line	160 km/h	N/A
General Features
•	Android Compatibility	5 and above	5 and above
•	Target Android Version	14	14
•	Automatic Wireless System Setup	✔ Included	✔ Included
•	Supported Languages	English and Finnish	English and Finnish
•	Lap Time Transmission via LAN or Wi-Fi	✔ Included	✖ N/A
•	Receiving Lap Times via LAN or Wi-Fi	✖ N/A	✔ Included
•	Lap/Sector Time Browsing	✔ Included	✔ Included
•	Driver Selection	✔ Included	✔ Included
•	Training Mode	✔ Included	✔ Included
•	Minimum Lap Time Setting	✔ Included	✔ Included
•	Editable Lap Times (Split/Remove/Restore)	✔ Included	✔ Included
•	Support for Multiple Timing System on the Same Track	✔ Included	✖ N/A
•	Automatic Session Recovery	✔ Included	✔ Included
•	Driver & Transponder Naming	✔ Included	✔ Included
•	Font size Adjustment	✔ Included	✔ Included
•	Customizable Timing Views	✔ Included	✔ Included
•	Diagnostics (Total Hours, Lap Count, Best Lap)	✔ Included	✔ Included
•	Transponder Battery Monitoring	✔ Included	✖ N/A
Practice Session
•	Lap Time Measurement	✔ Included	✔ Included
•	Session Stop Options	Manual, Time-Based, Lap Count Based	Manual, Time-Based, Lap Count Based
•	Results Sorting Options	Chronological, Total Time	Chronological, Total Time
•	Group or Individual Session Start/Stop	✔ Included	✔ Included
•	LapSnapper Trainer Mode	✔ Included	✔ Included
Qualifying Session
•	Lap Time Measurement	✔ Included	✔ Included
•	Session Stop Options	Manual, Time-Based, Lap Count-Based	Manual, Time-Based, Lap Count-Based
•	Results Sorting Options	Total Time, Best Lap	Total Time, Best Lap
•	Group or Individual Session Start/Stop	✔ Included	✔ Included
Race Session
•	Lap Time Measurement	✔ Included	✔ Included
•	Session Stop Options	Manual, Time-Based, Lap Count-Based	Manual, Time-Based, Lap Count-Based
•	Results Sorting Options	Total Time	Total Time
•	The session stops when leader reaches stop value (F1 type stop) or when the session time or lap count is reached	✔ Included	✔ Included
LapSnapper Trainer Mode
•	Automatic Restart of New Sessions	✔ Included	✔ Included
•	Result Estimates (Adaptive)	✔ Included	✔ Included
•	Adaptive Driver Performance Analysis	✔ Included	✔ Included
Commentary & Speech Synthesizer
•	Session Start/Finish Notifications	✔ Included	✔ Included
•	Latest Lap Time Announcements (Optional)	✔ Included	✔ Included
•	Best Lap Time Notifications	✔ Included	✔ Included
•	Race Commentary (Position Changes, Periodic Updates, Final Results)	✔ Included	✔ Included
Result Reporting
•	Automatic Saving of Race Results	✔ Included	✔ Included
•	Load, Edit, Remove Race Results	✔ Included	✔ Included
•	Automatic PDF Generation	✔ Included	✔ Included
•	Result Sharing via Email & Social Media	✔ Included	✔ Included
StartMatic (Automated Race Start System)
•	Automated Race Start	✔ Included	✔ Included
•	Countdown Timer with Visual & Audio Alerts	✔ Included	✔ Included
Remote Control System
•	Remote Control of Lap Timing System	✖ N/A	✔ Included
•	Remote Control of Client & Monitoring Software	✔ Included	✖ N/A
•	Remote Start/Stop of Sessions	✔ Included	✔ Included
•	Remote Control of StartMatic	✔ Included	✔ Included
•	Real-Time Lap Time Sharing Between Devices	✔(Transmission)	✔(Receiving)
•	Remote Driver Name Synchronization	✔ Included	✔ Included
•	Remote Editing of Lap Times	✔ Included	✔ Included
LapSnapper API (Application Programming Interface for Third-Party Developers)
•	Open API for Third-Party Integration	✔ Included	✖ N/A
•	External Race Management Software Integration	✔ Included	✖ N/A
•	Custom Application Development	✔ Included	✖ N/A
LapSnapper Pro3 Decoder Specifications (SKU: LS3-D-PRO)
•	Lap Time Accuracy ¹⁾	±0.001 s	✖ N/A
•	Connection to Android Device	USB
•	Maximum Distance (Decoder to Start/Finish Line)	5 m	✖ N/A
•	Maximum Distance (Android Device to Decoder)
	• 0 – 25 m by using USB 2.0 Extension Cable	0 - 25 m	✖ N/A
	• 0 – 50 m by using USB 2.0 Extender over RJ45	0 - 50 m	✖ N/A
•	Wireless Transponder Communication	2.4 GHz, 2.8 mW	✖ N/A
•	Supply voltage	5 V (USB)	✖ N/A
•	IP Rating (Protected against dust and dripping water)	IP51	✖ N/A
•	Size (L x W x D)	58x20x11.5 mm	✖ N/A
•	Weight	10 g	✖ N/A
•	Operating Temperature	-10°C - +50°C	✖ N/A
•	Storage Temperature	+10°C - +25°C	✖ N/A

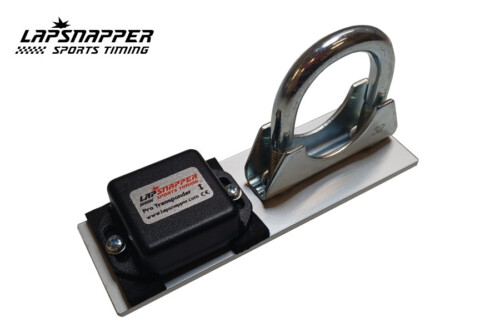

LapSnapper Pro3 Transponder for Karting Specifications (SKU: LS3-T-KART-PRO)
•	Lap Time Accuracy ¹⁾	± 0.001 s	✖ N/A
•	Detection technology ³⁾	Magnetic	✖ N/A
•	Maximum Magnetic Strip Detection Distance:
	• LapSnapper Pro3 Magnetic Strip 1.2 m	13 cm	✖ N/A
	• LapSnapper Pro3 Magnetic Strip 1.2 m Strong	18 cm	✖ N/A
•	Wireless Decoder Communication	2.4 GHz, 2.8 mW	✖ N/A
•	Unique Transponder IDs	Unlimited	✖ N/A
•	Customizable Transponder Names (Max 16 characters)	✔ Included	✖ N/A
•	Power Supply	Renata CR2032 MFR FH Coin Cell (3 V)	✖ N/A
•	Estimated Battery Life ²⁾	2 – 4 years	✖ N/A
•	Battery Voltage Monitoring	✔ Included	✖ N/A
•	IP Rating (Protected against "dust tight" and water projected from a nozzle)	IP65	✖ N/A
•	Size (L x W x D)	50x35x15mm	✖ N/A
•	Weight	15 g	✖ N/A
•	Operating Temperature	-10°C - +50°C	✖ N/A
•	Storage Temperature	+10°C - +25°C	✖ N/A
LapSnapper Transponder for RC Specifications (SKU: LS3-T)
•	Lap Time Accuracy ¹⁾	± 0.001 s	✖ N/A
•	Detection technology ³⁾	Magnetic	✖ N/A
•	Maximum Magnetic Strip Detection Distance:
	• LapSnapper Pro3 Magnetic Strip 1.2 m	13 cm	✖ N/A
	• LapSnapper Pro3 Magnetic Strip 1.2 m Strong	18 cm	✖ N/A
•	Wireless Decoder Communication	2.4 GHz, 2.8 mW	✖ N/A
•	Unique Transponder IDs	Unlimited	✖ N/A
•	Customizable Transponder Names (Max 16 characters)	✔ Included	✖ N/A
•	Power Supply	Renata CR2032 MFR FH Coin Cell (3 V)	✖ N/A
•	Estimated Battery Life ²⁾	2 – 4 years	✖ N/A
•	Battery Voltage Monitoring	✔ Includeds	✖ N/A
•	IP Rating (Protected against "dust tight" and water projected from a nozzle)	IP65	✖ N/A
•	Size (L x W x D)	27.5x27.5x9mm	✖ N/A
•	Weight	8 g	✖ N/A
•	Operating Temperature	-10°C - +50°C	✖ N/A
•	Storage Temperature	+10°C - +25°C	✖ N/A
LapSnapper Pro3 Magnetic Strip 1.2 m Specifications (SKU: LS3-MS12)
•	Maximum Detection Distance	13 cm	✖ N/A
•	Size (W x H)	12 x 32 mm	✖ N/A
•	Length (Two 0.6 m modules)	1.2 m	✖ N/A
•	Weight	2 kg	✖ N/A
LapSnapper Pro3 Magnetic Strip 1.2 m Strong Specifications (SKU: LS3-MS12S)
•	Maximum Detection Distance	18 cm	✖ N/A
•	Size (W x H)	26 x 32 mm	✖ N/A
•	Length (Two 0.6 m modules)	1.2 m	✖ N/A
•	Weight	4.2 kg	✖ N/A
Other Information
•	Warranty	12 months	12 months

¹⁾ LapSnapper Lap Timing Systems are factory-calibrated at time accuracy. The calibration takes 60 minutes for the decoder and 30 minutes for the transponders.
²⁾ The transponder’s lifespan depends on usage frequency and the operating environment.
³⁾ LapSnapper Magnetic Strips can be embedded in asphalt, concrete, ground, floors or water, or installed on the surface of the race track. The transponders maximum magnetic strip detection distance should be considered when choosing the installation method.

We reserve the right to modify or update information at any time without prior notice.

Additional information

Weight	4200 g
Dimensions	600 × 140 × 140 mm
