Name: LapSnapper Client &amp; Monitoring Software for Android
SKU: LS3-SW-C
Availability: InStock

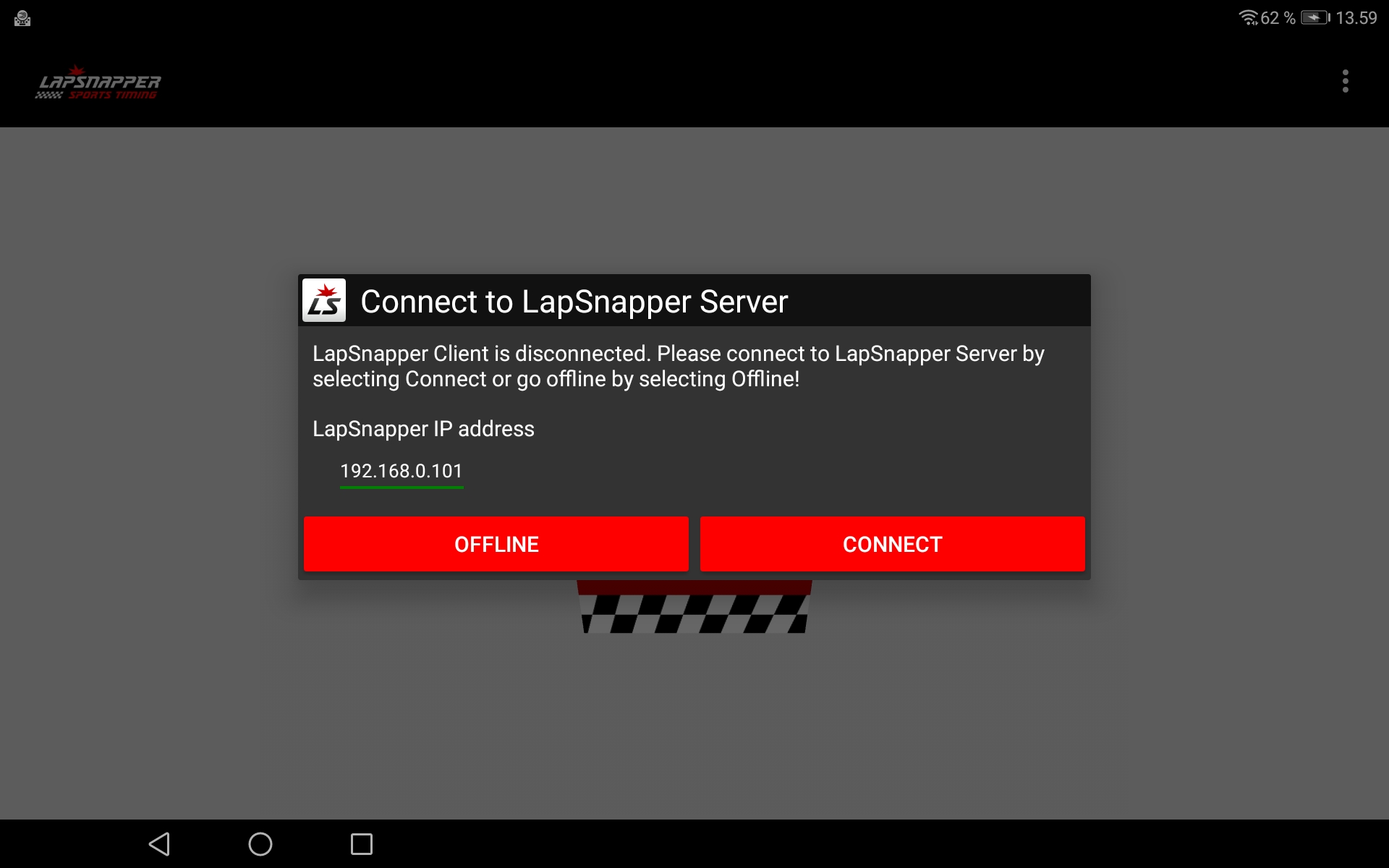

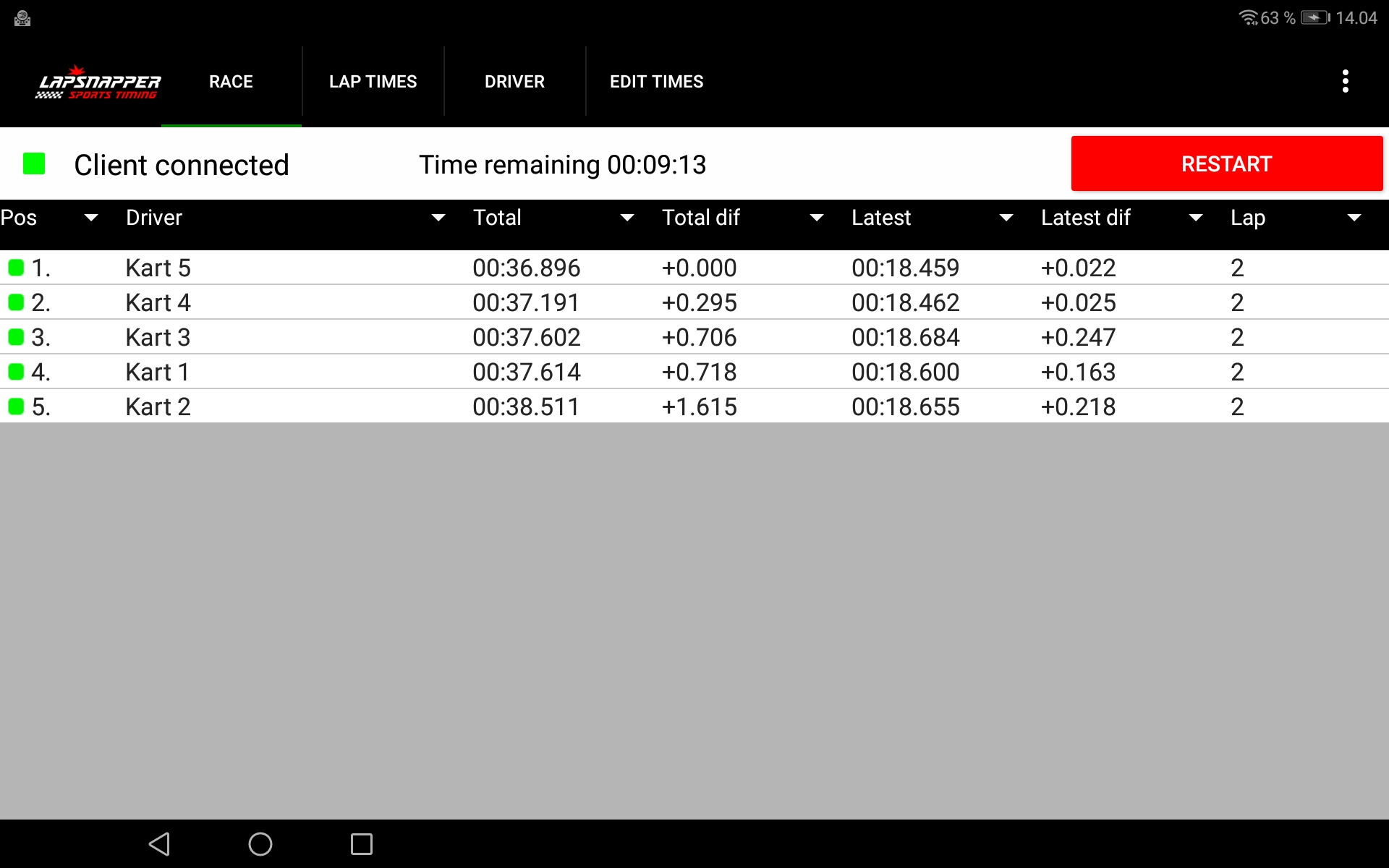

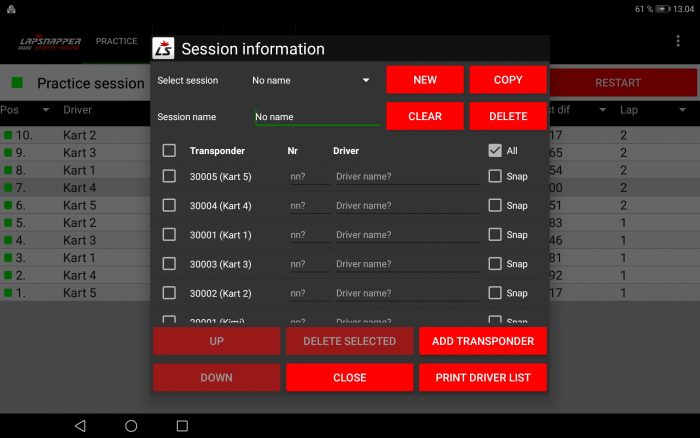

LapSnapper Client & Monitoring Software for Android

LapSnapper Client & Monitoring Software for Android - Image 2

LapSnapper Client & Monitoring Software for Android - Image 3

LapSnapper Client & Monitoring Software for Android - Image 4

LapSnapper Client & Monitoring Software for Android - Image 5

LapSnapper Client & Monitoring Software for Android - Image 6

LapSnapper Client & Monitoring Software for Android - Image 7

LapSnapper Client & Monitoring Software for Android - Image 8

LapSnapper Client & Monitoring Software for Android - Image 9

LapSnapper Client & Monitoring Software for Android - Image 10

LapSnapper Client & Monitoring Software for Android - Image 11

LapSnapper Client & Monitoring Software for Android - Image 12

LapSnapper Client & Monitoring Software for Android - Image 13

LapSnapper Client & Monitoring Software for Android - Image 14

LapSnapper Client & Monitoring Software for Android - Image 15

LapSnapper Client & Monitoring Software for Android

159.00 €

SKU: LS3-SW-C Category: Karting

Description
Technical Information

Description

The LapSnapper Client & Monitoring Software allows lap times to be displayed on TV screens running Android or connected to an Android TV box. Placing TVs around the track enhances the customer experience by providing real-time race updates.

Additionally, the software allows remote control of the LapSnapper Lap Timing System via an Android tablet or mobile phone, enabling users to start and stop sessions with ease. The LapSnapper Client & Monitoring Software connects seamlessly to the LapSnapper Lap Timing System via Wi-Fi or LAN, displaying and storing lap and optionally sector times in real time. It also manages practice, qualifying, and race sessions, ensuring a smooth and efficient experience for race organizers. Designed for clubs, racing tracks, rental karting centers, and racing teams, it delivers a powerful and reliable solution for timing and race management.

Key features

Optimized for lap time sharing – Display lap times on Android tablets, phones, or TVs connected to an Android TV box.
Seamless connectivity – Receives and presents real-time lap data from the LapSnapper Lap Timing System.
High precision timing – Lap time accuracy of 0.001 seconds.
Broad compatibility – Runs on Android 5.0 or newer.
Comprehensive session support – Compatible with practice, qualifying, and race sessions.
Data management – Save and load measured lap times for future reference.
Remote control integration – Fully supports the LapSnapper Remote Control Interface for added convenience.

Order includes

LapSnapper Client & Monitoring Software for Android

LapSnapper Documents

Link to LapSnapper Technical Documents

Technical Information

	FEATURE	LAPSNAPPER PRO3 LAP TIMING SYSTEM	LAPSNAPPER CLIENT& MONITORING SOFTWARE
	CONTENTS OF PRODUCT PACKAGE
•	LapSnapper Lap Timing Software for Android	x
•	LapSnapper Client&Monitoring Software for Android	o	x
•	LapSnapper Pro3 Decoder	x
•	LapSnapper Pro3 Transponder for Karting	x
•	LapSnapper Pro3 Magnetic Strip (Start/finish and sector lines)	x
	TECHNICAL SPECIFICATION OF LAP TIME MEASUREMENT
•	Accuracy of lap time measurement *	± 0.001 s	± 0.001 s
•	Session time	x	x
•	Lap times and lap number	x	x
•	Sector and intermediate times (Optional)	Max. 3 pcs	Max. 3 pcs
•	Total time and lap counting	x	x
•	Best lap time and lap number	x	x
•	Average lap time	x	x
•	Difference (Lap time, total time and best lap time)	x	x
•	Rank of lap time	x	x
•	Average speed	x	x
•	The maximum total time and lap count of the session	Unlimited	Unlimited
•	The maximum crossing speed of the start/finish and sector lines	160 km/h	N/A
	GENERAL
•	Compatible with Android 5.0 and newer	x	x
•	Target Android version	14	14
•	Supported languages (User interface and speech): English and Finnish	x	x
•	Supports sending the lap times to the LapSnapper Client Software via Wi-Fi network	x
•	Supports receiving the lap times from the LapSnapper Lap Timing System via Wi-Fi network		x
•	Browsing of lap and sector times	x	x
•	Selection of the drivers to monitor	x	x
•	A driver view, which can be used in training	x	x
•	The minimum lap time setting	x	x
•	Edit View of the lap times: Removal and split of the lap times. Restoring the removed or splitted lap times.	x	x
•	Supports multiple decoders (A host decoder and slave decoders). It is recommended to use simultaneously only one decoder	x
•	Automatic recovery of the session if software crashes	x	x
•	Naming of drivers	x	x
•	Naming of transponders	x
•	Diagnostics (Total hours, lap count and best lap)	x	x
•	Transponder battery monitoring	x
	PRACTICE SESSION
•	Lap time measurement of the practice session	x	x
•	The session can be stopped manually or based on the session time or lap count	x	x
•	The results are ordered in chronological order or against the total time	x	x
•	Group or individual start/stop of the session	x	x
•	LapSnapper Trainer mode with the adaptive driver performance analysis	x	x
	QUALIFYING SESSION
•	Lap time measurement of the qualifying session	x	x
•	The session can be stopped manually or based on the session time or lap count	x	x
•	The results are ordered against the best lap or total time	x	x
•	Group or individual start/stop of the session	x	x
	RACE SESSION
•	Lap time measurement of the race session	x	x
•	The session can be stopped manually or based on the session time or lap count	x	x
•	The results are ordered against the total time	x	x
•	The session stops when leader reaches stop value (F1 type stop) or when the session time or lap count is reached	x	x
•	Race commentary (Position is changed, periodic race position information and final results)	x	x
	LAPSNAPPER TRAINER MODE
•	Automatic restart of new session for the drivers	x	x
•	Result estimates (Adaptive)	x	x
•	Adaptive driver performance analysis	x	x
	COMMENTARY (SPEECH SYNTHESIZER)
•	Notification, when the session is started and finished	x	x
•	Latest lap time (Can be disabled from the options menu)	x	x
•	Notification about the best lap time	x	x
•	Result estimates in LapSnapper Trainer Mode	x	x
•	Race commentary (Position is changed, periodic race position information and final results)	x	x
	RESULT REPORTING
•	Automatic saving of the race results	x	x
•	The race results can be loaded, edited and removed	x	x
•	Automatic creation of the race results into PDF format	x	x
•	Supports sending the race results by using e-mail or social media	x	x
	STARTMATIC
•	StartMatic automates the race start	x	x
•	Supports countdown counting (Speech and visual countdown)	x	x
	REMOTE CONTROL INTERFACE
•	LapSnapper Lap Timing System can be controlled remotely by using LapSnapper Client Software and vice versa	x	x
•	LapSnapper Lap Timing System and LapSnapper Client software are synchronized	x	x
	LAPSNAPPER SOCKET SERVER INTERFACE
•	LapSnapper Socket Interface offers open programming interface for the third party software developers. It makes it possible to create own aplications or connect the third party race management software to LapSnapper	x	x
	LAPSNAPPER PRO3 DECODER (LS3-D-PRO)
•	The maximum distance from the Android device to the decoder:
	• 0 – 25 m by using USB 2.0 Extension Cable	0 - 25 m
	• 0 – 50 m by using USB 2.0 Extender over RJ45	0 - 50 m
•	Recommended maximum distance from the decoder to the start/finish line	5 m
•	Support for multiple decoders in the same session (1 host decoder and one or more slave decoders)	x
•	Connection to Android smart device	USB connector
•	Communication interface between the transponder to decoder	Wireless
•	Frequency	2.4 GHz
•	Nominal output power	2.8 mW (4.5 dBm)
•	Supply voltage (From USB connector)	5 V
•	IP rating (Protected against dust and dripping water)	IP51
•	Size (L x W x D)	58x20x11.5 mm
•	Weight	10 g
•	Recommended operation temperature	-10°C - +50°C
•	Recommended storage temperature	+10°C - +25°C
	LAPSNAPPER PRO3 TRANSPONDER FOR KARTING (LS3-T-KART-PRO)
•	Accuracy of lap time measurement *	± 0.001 s
•	Detection technology ***	Magnetism
•	The maximum distance from the transponder to the magnetic strip, when the start/finish line is crossed:
	• LapSnapper Magnetic Strip 1.2 m	13 cm
	• LapSnapper Magnetic Strip 1.2 m Strong	18 cm
•	Communication interface between the transponder to decoder	Wireless
•	Frequency	2.4 GHz
•	Nominal output power	2.8 mW (4.5 dBm)
•	Unlimited amount of the unique transponder Ids	x
•	Naming of the transponder (The maximum length of the transponder name is 16 characters)	x
•	Power supply is transponder internal Renata CR2032 MFR FH coin cell battery	3 V
•	Estimated life time of transponder when used in karting **	2 – 4 years
•	Battery voltage measurement by using LapSnapper Lap Timing Software	x
•	IP rating (Protected against "dust tight" and water projected from a nozzle)	IP65
•	Size (L x W x D)	50x35x15mm
•	Weight	15 g
•	Recommended operation temperature	-10°C - +50°C
•	Recommended storage temperature	+10°C - +25°C
•	The minimum distance between the transponder to magnetic strips in the storage	0.5 m
	LAPSNAPPER TRANSPONDER FOR RC (LS3-T)
•	Accuracy of lap time measurement *	± 0.001 s
•	Detection technology ***	Magnetism
•	The maximum distance from the transponder to the magnetic strip, when the start/finish line is crossed:
	• LapSnapper Magnetic Strip 1.2 m	13 cm
	• LapSnapper Magnetic Strip 1.2 m Strong	18 cm
•	Communication interface between the transponder to decoder	Wireless
•	Frequency	2.4 GHz
•	Nominal output power	2.8 mW (4.5 dBm)
•	Unlimited amount of the unique transponder Ids	x
•	Naming of the transponder (The maximum length of the transponder name is 16 characters)	x
•	Power supply is transponder internal Renata CR2032 MFR FH coin cell battery	3 V
•	Estimated life time of transponder when used in RC **	2 – 4 years
•	IP rating (Protected against "dust tight" and water projected from a nozzle)	IP65
•	Size (L x W x D)	27.5x27.5x9mm
•	Weight	8 g
•	Recommended operation temperature	-10°C - +50°C
•	Recommended storage temperature	+10°C - +25°C
•	The minimum distance between the transponder to magnetic strips in the storage	0.5 m
	LAPSNAPPER PRO3 MAGNETIC STRIP 1.2 M (LS3-MS12)
•	The maximum magnetic strip detection distance of the transponder:
	• LapSnapper Pro3 Transponder for Karting	13 cm
•	Size (W x H)	12 x 32 mm
•	Length (2 pcs x 0.6 m/pcs)	1.2 m
•	Weight	2 kg
	LAPSNAPPER PRO3 MAGNETIC STRIP 1.2 M STRONG (LS3-MS12S)
•	The maximum magnetic strip detection distance of the transponder:
	• LapSnapper Pro3 Transponder for Karting	18 cm
•	Size (W x H)	26 x 32 mm
•	Length (2 pcs x 0.6 m/pcs)	1.2 m
•	Weight	4.2 kg
	OTHER
•	Warranty	12 months	12 months

x = Feature is included in the product
o = Optional feature
* LapSnapper Lap Timing Systems have been time-calibrated at factory. Calibration time is 60 minutes
** Transponder life time depends on the amount of use and operating environment
*** LapSnapper Pro3 Magnetic Strips can be embedded into the asphalt, concrete, ground, floor or water, install on the race track surface or install above the race track. The maximum magnetic strip detection distance of the transponder need to take account, when installation method will be selected

We reserve the right to make changes at any time without prior notice.
